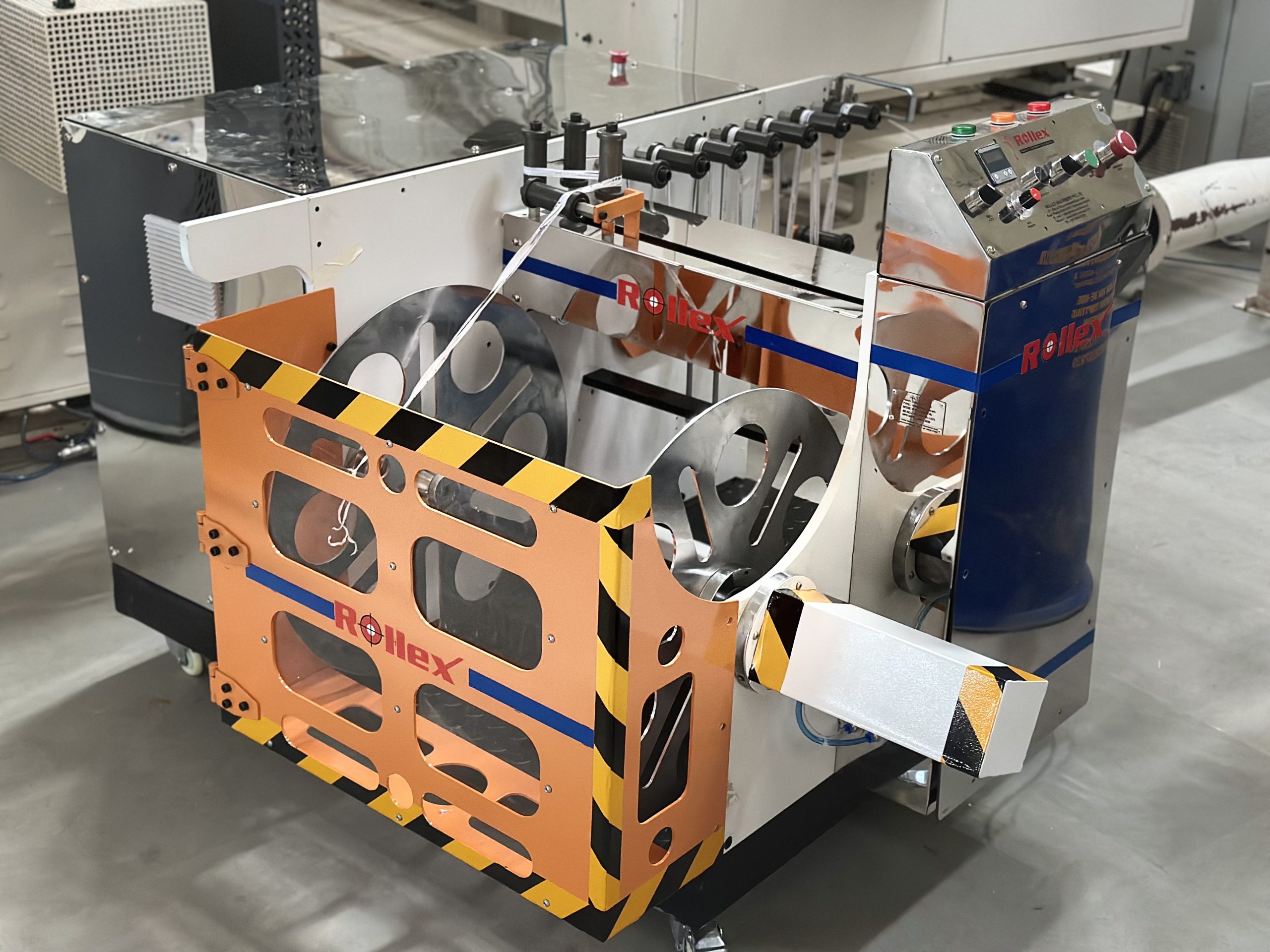

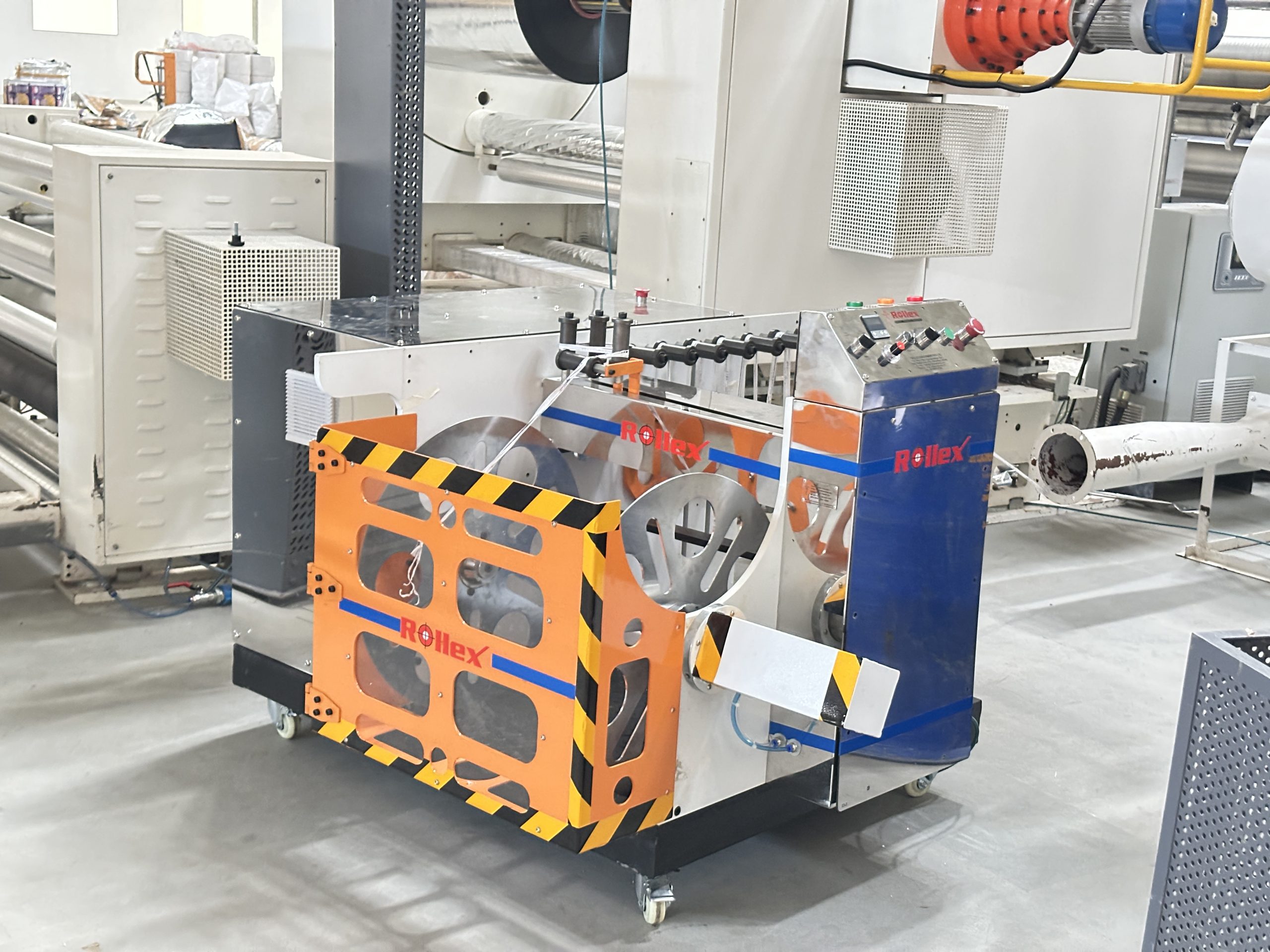

TRIM WINDER MACHINES / EDGE TRIM SPOOLERS
MODEL : R-TW-1000 R3
TRIM WINDER MACHINES / EDGE TRIM SPOOLERS
MODEL : R-TW- 1000 R3
ROLLEX TRIM WINDING MACHINE, Trim Disposal for Converters Has Always Posed a Challenge. While Nobody Wants Excess Trim Material, Certain Situations Make It Unavoidable. Hence, Addressing the Issue of Trim Disposal and Deriving Value from Trim Waste Becomes Crucial. Considerable Investments May Go Into Acquiring Slitting Equipment, Yet Operational Speed Can Be Hindered by Trim Waste Problems, Undercutting Anticipated Productivity. Therefore, Optimizing the Performance of Converting Machines Relies on Achieving Superior Profitability Through Quality. Our Trim Winder System Presents a Straightforward Solution Employing Cutting-Edge Winding Technology, Facilitating the Effective and Efficient Management of Trims, Thereby Elevating Profitability.
R-TW- 1000 R3 Is the Most Technologically Advanced Trim Winder Machine for the Converting Industry. The Equipment Automatically Synchronizes to Any Slitter Machine and Extrusion Layer Coating Machine at Any Speed Up to 500, 700, or 1000 Meters / Minute.
Trim Winding System Is a Basic Piece of Equipment That Uses Cutting-Edge Winding Technology to Help You Handle Trims Properly and Efficiently for Increased Profitability.
This Is Our Trim Removal System. Will Process a Wide Range of Materials Based on the Needs of the Customer.
ROLLEX MACHINES Are Designed to Be Sturdy, Durable, and Dependable. Our Design Is Aimed at Enhancing Productivity and Operational Excellence.
GALLARY
VIDEOS
- Trim Width [Both Side] - 5 mm to 30 mm
- Trim Thickness - 25 µm 100 µm [Micron]
- Machine Running Speed 250,500 & 700 MPM
- PNUMETIC AIR-SHAFT FOR FAST AND EASY REEL CHANGE OVER
- PNUMETIC ARM LOCKING SYSTEM FOR REEL REWINDING SUPPORT

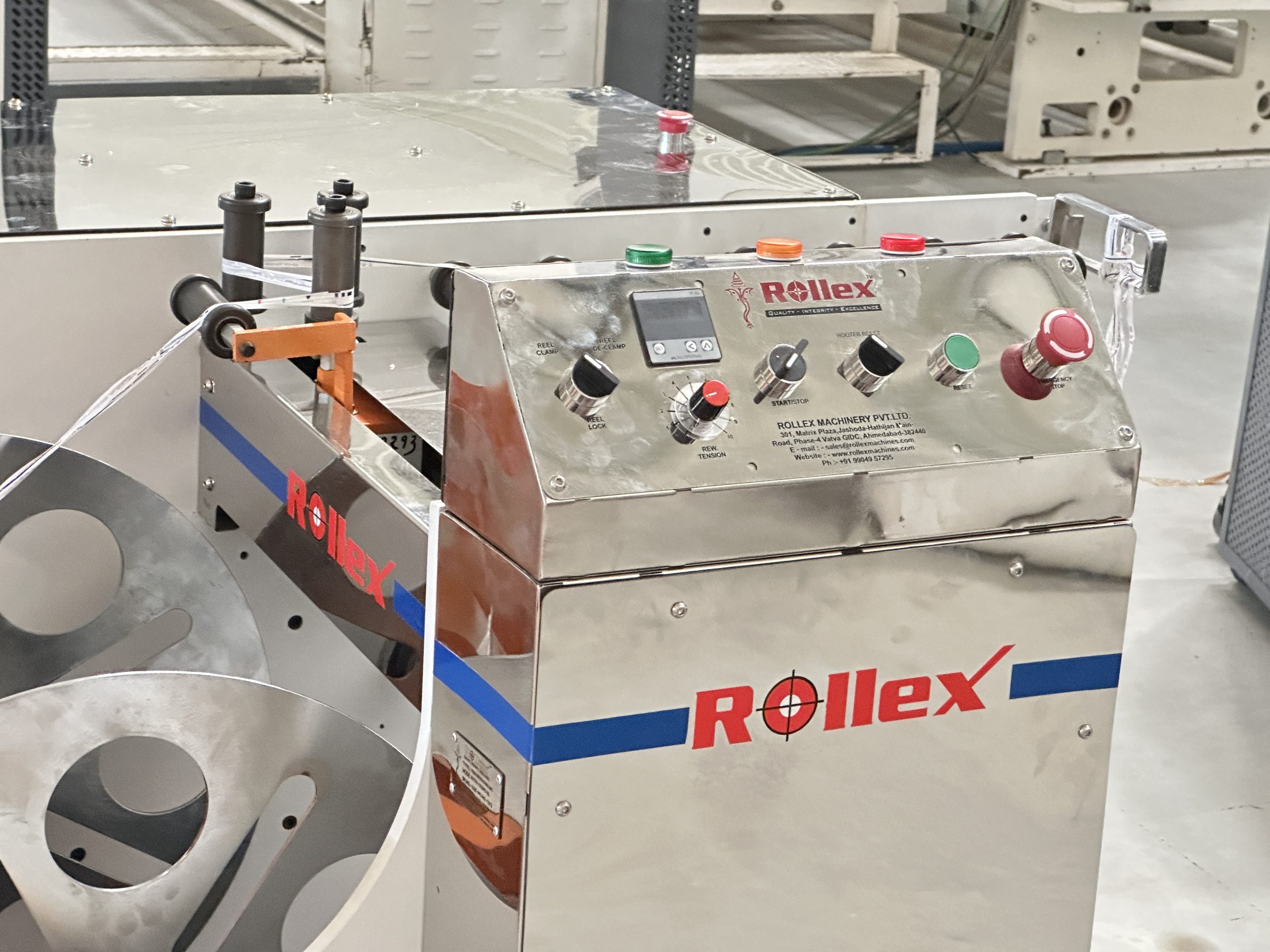

- TENSION DISPLAY METER FOR BETTER ACCURACY AND PERFOMANCE
- Reel Packaging Diameter - Ø 450 mm.
- Reel Packaging Length - Ø 462 mm.
- Power - 3 HP-415 V ± 5 % ,3 Phase,50Hz.
- Machine Size [L X W X H] - 58 X 51 X 40 [INCH]
- Packaging Size [L X W X H] - 62 X 55 X 45 [INCH]
- Machine Weight (Approx) - 300 Kg [Net] - 350 Kg [Gross]
- FACILITATING MACHINE MOVEMENT AND STREAMLINING REEL CHANGE-OVER.
- AUTO SYNCHRONIZED FROM 0 TO 750 MPM.
- LOW TRIM WASTE STORAGE AREA.
- DOUBLE SIDE TRIM WINDING FROM LOW TO HIGH MICRON
- EQUIPMENT THAT IS COMPLETELY AUTOMATIC.
- QUICK REEL CHANGE OVER WITH AIR-SHAFT & ARM LOCK
- WORK SPACE IS CLEAN AND ORGANIZED, WITH LOW BLOWER NOISE POLLUTION.
- HIGH TRIM RE-SELL VALUE.
- TRANSVERSAL UNIT BASED ON GUIDEWAYS FOR LONGEVITY IMPROVEMENT
- FABRIC WINDER
- HOT-STAMPING WASTE WINDER.
- CABLE WINDER.
- CLOTH WINDER.
FEATURES OF THE MACHINE
- BOPP, BOPA, BOPET, PET, LDPE – PLAIN, PRINTED, COATED OR METALIZED [25µm to 100 µm Micron]
- Machine Size [ L X W X H ] 58 X 51 X 40 [ INCH ]
- Machine Size [ L X W X H ] 1473 X 1295 X 1016 [ M M ]
- Packaging Size [L X W X H] IN INCH
- 62" X 55" X 45"
- Trim Reel Width : 462 mm .
- Trim Reel Diameter : 450 mm.
- Trim Reel Weight : 40 to 100 Kg [ ACCORDING TO THE MATERIAL ]
- Catalogue : TRIM WINDER MACHINE MODEL: R-TW-1000 R3
APPLICATIONS
- Attached with extrusion blown film.
- R-TW-1000 R3 Attached to Extrusion Layer Coating.
- Woven Fabric Extrusion Coating & Lamination.
- Both Side trimming.
- trim Width 25 to 30 mm.
- Attached with Hot Stamp Foils Machines.
- Attached with MATALIZED FILM .
- Attached with Pouch Machine .
INSTALLATION / SPARES PARTS
- WE MAKES VERY SOON .
- DANCER SANSOR RE-PROGRAMMING
- BLOCK CHANGE.
