COIL REWINDING MACHINE
MODEL : R-DR-450.

ROLLEX Provides a special Doctoring Rewinding Machine Model: R- DR – 450 for correcting tension-related defects, to edge profile & doctoring of finished products.

Doctoring Rewinding Machine In Flexible Packaging Industry slitter operators and material isn’t always perfect. Slitted rolls are sometimes wound with undesirable defects, resulting in the wasted roll.

Doctoring Rewinding Machine ensures that the converter will minimize wasted -turning inventory of poor rolls to profit.

Machine Specialize in hi-performance doctoring machine that is ideal for rewinding of Narrow slit finished reels and can reduce rewinding time by more than 70 -90 % .

GALLARY

_
COIL REWINDING MACHINE

VIDEOS

_
TECHNICAL SPECIFICATION
  • SPECIFICATION - R-DR-450
  • Mechanical Speed [m/min] - 0 TO 150
  • Unwind Shaft - Cantilevered Mechanical Shaft
  • Unwind Core Inner Diameter [mm] - 76 / 3" or (152 / 6" Optional)
  • Unwind Web Width [mm] - 50-450
  • Maximum Unwind Diameter [mm] - Ø 500 mm.
  • Unwind Tension Control - 2 HP-415 V ± 5 % ,3 Phase,50Hz.
  • Machine Size [L X B X H] - 40 X 40 X 24 [INCH]
  • Packaging Size [L X B X H] - 72" X 57" X 53" [INCH]
  • Machine Weight (Approx) - 500 Kg [Net] - 740 Kg [Gross]
SALIENT FEATURE
  • Cantilevered Mechanical shafts make the loading and unloading quick and easy. Single operator is required to operate the machine.
  • Rewinding Machine adopted GERMAN E+L edge guiding system, the smoothest rewinding edge is ensured
  • One AC motors with Drive providing the most accurate winding tension control
  • Provision of Encoder Mounting for Ink-Jet Printing Machine.
  • Manual lay-on roller
  • SS Table for Ink Jet Printing.
  • Unwind edge guide system.
  • Tension Controlled By Manual Break.
  • Edge guiding system creates an extremely neat edge.
  • Auto counter for winding length.
OPTIONAL ACCESSORIES
  • STATICS ELIMINATOR.
  • AIR SHAFT UNWIND AND REWIND.
  • UNWIND PNEAUMATIC BREAK.
  • AUTO TENTION CONTROLER SYSTEM.

FEATURES OF THE MACHINES

_
SUBSTRATE / MATERIALS
  • BOPP, BOPA, BOPET, PET, LDPE –PLAIN, PRINTED, COATED OR METALIZED [25 µm to 100 µm Micron]
TECHNICAL SPECIFICATION
  • [A] - TECHNICAL SPECIFICATION
  • Max Web Width – 450mm
  • Min Web Width-70 mm.
  • Max Speed – 150mpm.
  • Unwind Reel Diameter -400 mm.
  • Rewinding Reel Diameter -400 mm.
  • Unwind & Rewind Core ID 76 mm(3’’) STD.
  • Max. Reel Weight-100 Kg.
  • Web Edge Guiding System Accuracy ± 0.5 mm.
  • Core ID - STD 3”. & 6” [Inch]
  • Lay-on Roll System -Pneumatic System
  • 2 Drive System - SEIMENS SINAMICS MAKE.
  • Operator Interface - HMI 10” & 7 “Both Side
  • Tension Control - Unwind to Rewinder Single Load-Controller System.
  • Tension Range - 2 Kg Min. to 40 Kg Max.
  • Auto Reverse Function -Auto / Manual.
  • Web Guider Axial Motion - ± 50 mm.
  • Unwind Rewind with sturdier design Mechanical Shaft.
  • ELECTRIC EDGE Guiding System with complete unwind unit.
  • Electric Panel with AC Variable Frequency Drive with Motor – 2 hp.
  • 75 mm Aluminum Guider Roller wrapped with Imported Cork Fillet - 450mm.
  • Unwinding System with Mechanical Brake.
  • 2 HP Motor Rotomotive Make.
  • Provision of Encoder Mounting for Ink Jet Printing Machine.
  • 2 HP Drive – Control Techniques Make.
  • Provision of Incorporating Ink Jet Printing machine.
  • SS Table for Ink Jet Printing.
  • Power Required - 415 V ± 10 %,3 Phase,50Hz
  • Machine Dimension (H X W X L) H=1402 mm X L=1295 mm X W=1546mm.
  • Packaging Size (H X W X L) H=1473 X L= 1092 W=1651.
  • Machine Weight: -550 KG Approximate.
  • Application - Suitable for printed and Non printed substrate (BOPP, Polyester, LDPE, etc.).
UNWINDING SECTION
  • Cantilever Mechanical shaft with 3" tapper cone.
  • Rubber Cork Material for Avoid Slippage
  • Tension Controlled by Manual Break.
  • Electric Edge Guide System.
DOCTORING SECTION
  • Rubber Cork Material for Avoid Slippage
  • Provision For Incorporating Inkjet Printing System.
DIGITAL EDGE GUIDING SYSTEM
  • Each Unit Comprises of:
  • Digital Controller DC 1340 (Supply Voltage: 24V, With Operating Panel

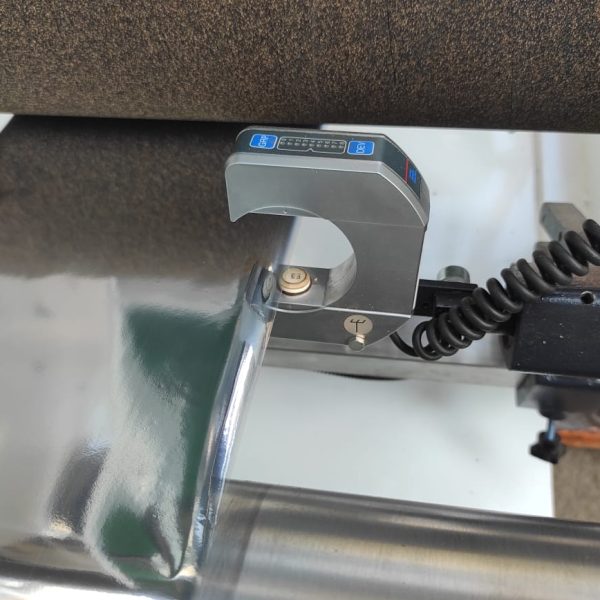

  • Digital Ultrasonic Sensor FX 4632 for Edge guiding.
  • Sensor Mounting Bracket VA 0102.
  • Digital Actuator AG 4391, (For 500 N Force) With (+/- 50 mm).
  • Proximity Switch for Servo Centre operation.
  • Cable for Digital Controller (DC) to Digital Actuator (AG) Cable Length (5Mtr)
MACHINE DIAMENTION
  • Machine Dimension (H X W X L) H=1402 mm X L=1295 mm X W=1546mm.
PACKAGING DIAMENTION
  • Packaging Size (H X W X L) H=1350 X L= 1830 X W=1450 .[MM]
  • Packaging Size (H X W X L) H=53" X L=72" X W= 57". [INCH]
CATALOGUE R-DR-450
  • Catalogue : COIL REWINDING MACHINE MODEL: R-DR-450.

APPLICATIONS

_
VIDEO R-DR-450.
  • COIL REWINDING MACHINE MODEL : R-DR-450 .
  • MODEL : R-DR-450 .
SECTION 1
  • Basic Price :Ex Works Ahmadabad
  • Packing Charge : 4500/- will be charge extra at the time of delivery Wooden Caret Size :- 46”X28”X29”
  • GST : 18% Extra at actual at Dispatch time.
  • Payment : 100% Advance
  • Our Bankers Details : HDFC Bank Ltd.GIDC Vatva Branch,Ahmadabad.A/c. No: 09712560003494.NEFT / RTGS Code: HDFC0000971.
  • Delivery : Within 7 Days after receipt of confirm purchase order along with advance payment.
  • Delivery Place : Ex Works, Vatva, Ahmadabad, Gujarat
  • Freight : Will be paid by you as per actual
  • Installation : To & From Fare + Actual Lodging, Boarding Local Conveyance & service charge Rs 2500/-person/day 8 hours will be charge will be customer account.
  • Inspection : The machine must be inspected by customer or its representative on your expenses prio.r to dispatch. Any Changes will not be done at customer site.
  • Guarantee& Warranty : 06 months from the date invoicing thereafter Service charges will be extra as actual.
  • Offer Validity : 15 Days from date of offer giving by us.
