SEMI-AUTO CORE CUTTER MACHINE
MODEL : R-SACC-1200.

CARDBOARD TUBE CUTTING MACHINE

ROLLEX MACHINERY has developed Range of Core Cutting Machines [or Tube Cutting Machines] to suit every requirement including Manual, Semi Automatic through to Fully Automatic models.

Semi-Auto Core Cutting Machines / Cardboard Tube Cutting Machines

The ROLLEX Series R-SACC-1200 range of  Semi-Auto Core Cutting Machines that is practical, efficient and cost effective. It produces an accurate, clean quality cut with quick and easy change –over for multiple core diameters and wall thicknesses. Cutting is achieved by using a free running crush cut knife principle.

SEMI-AUTO CORE CUTTER.

ROLLEX R-SACC-1200 manual paper core cutting machine is able to realize clean, accurate, burr-free cuts ensures that your core cutting process is simple and cost-effective.

It not only could cut cardboard or paper tube cores with accuracy and quality. What’s more, switch between different core diameters is easy, saves your time. Of course, ROLLEX MACHINERY R-SACC-1200 Semi-Auto paper core cutter has other features, contact us for more details.

Simplicity. And Efficiency. That’s what the R-SACC-1200 core cutter is all about.It has been designed to cut cores all day long in a simple and efficient manner.When you do digital production, you’ll constantly have a requirement for different core sizes.

Therefore, ROLLEX MACHINERY came up with a paper core cutting machine that’s simple to use and a great partner for finishing machines. As a Semi-Auto paper core cutter, the R-SACC-1200  is the perfect machine for low to medium-volume users. It cuts core diameters between 75 mm to 150 mm. The machine produces cutting lengths of  10 mm to 1000 mm.



GALLARY

_

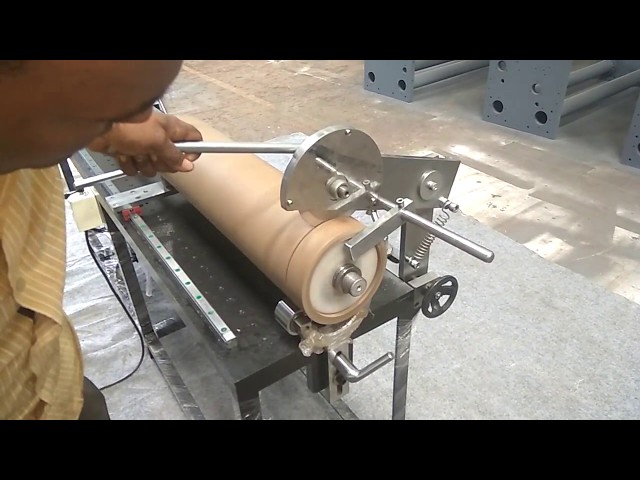

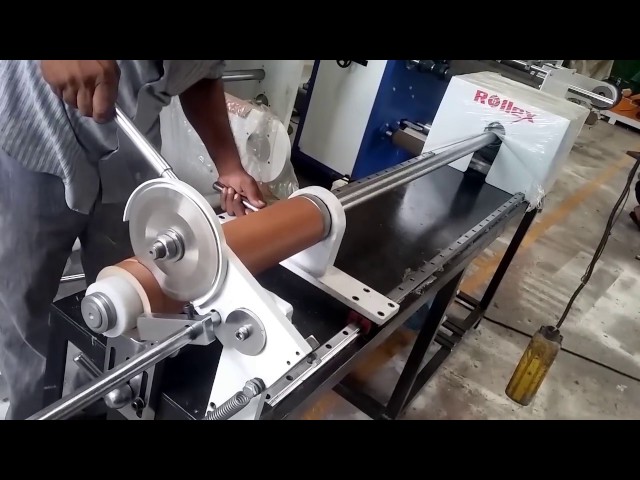

VIDEOS

_
TECHNICAL SPECIFICATION
  • SPECIFICATION - R-SACC-1200
  • Core Inside Diameter - Ø75 mm & Ø152 mm [3" & 6"]
  • Core Length - 1200 mm
  • Core Thickness - 5 mm to 10 mm.
  • Cutting Length - 10 mm to 1200 mm.
  • Cutting Speed - 50 cuts/min.
  • Electrical Supply - 415 V ± 5 % ,3 Phase,50Hz.
  • Motor Specification - 2 HP / 1440 RPM
  • Machine Size [L X B X H] - 80" X 25" X 46" [INCH]
  • Packaging Size [L X B X H] - 87" X 31" X 53" [INCH]
  • Machine Weight (Approx.) - 200 Kg [Net] - 250 Kg [Gross]
R-MCC
ADVANTAGES
  • Each cut only takes 0.5s.
  • Core Size Accurate Cutting.
  • More Cutter Life.
  • Fast Common Cutting.
  • Easy core length setting.
  • Clean, accurate, burr-free cuts
R-MCC
OPTIONS
  • Semi-Auto Core Cutter 3" & 6" Combo.
  • Semi-Auto Core Cutter 6".
R-MCC
APPLICATION
  • Converting
  • Core/Tube Manufacturers
  • Flexible Packaging
  • Label Stock
  • Food Packaging
  • Medical
R-MCC
SEMI-AUTO CORE CUTTER DETAILS

Semi-Auto Core Cutting Machine / Cardboard Tube Cutting Machines The ROLLEX MACHINERY Series R-SACC-1200 range of Semi-Auto Core Cutting Machine is practical, efficient, and cost-effective. It produces an accurate, clean quality cut with quick and easy change–over for multiple core diameters and wall thicknesses. Cutting is achieved by using a free-running crush cut knife principle.

R-MCC
CUTTING BLADE

The machine comes with one cutter blade. The blade is made of tungsten steel, which makes the cutter blade very strong.Cutter blades made of tungsten steel have excellent properties. Tungsten steel has high resistance to tear and wear, especially in high heat.You don’t have to worry about getting the blade getting dull. The tungsten steel alloy makes the cutter blade tough and strong to last several months of usage.

CUTTING BLADE
REPEAT ACCURACY

The R-SACC-1200 core cutter holds the repetitive cuts to close tolerance using an in-built scale for the measuring bar. At the mandrel, adjustable stop-shaft guarantees the length measurements remain intact, thus ensuring accuracy for repeated cuts.

Papaer-Core-Image-2
MACHINE DIAMENTION
  • MACHINE MODEL : R-SACC-1200. 3"
  • SIZE [ L X B X H ] : 80" X 25" X 46". [INCH ]
  • SIZE [ L X B X H ] : 2032 X 635 X 1168. [ MM ]
SACC-1200 DIAMENTION
PACKAGING DIAMENTION
  • MACHINE MODEL: R-SACC-1200. 3"
  • SIZE [ L X B X H ] : 87" X 31" X 53". [INCH ]
WOODEN BOX R-TW-450

FEATURES OF THE MACHINES

_
APPLICATION
  • Converting
  • Core/Tube Manufacturers
  • Flexible Packaging
  • Label Stock
  • Food Packaging
  • Medical
SEMI-AUTO CORE CUTTER DETAILS

Semi-Auto Core Cutting Machine / Cardboard Tube Cutting Machines The ROLLEX MACHINERY Series R-SACC-1200 range of Semi-Auto Core Cutting Machine is practical, efficient, and cost-effective. It produces an accurate, clean quality cut with quick and easy change–over for multiple core diameters and wall thicknesses. Cutting is achieved by using a free-running crush cut knife principle.

HOW MANY CUTS PER MINUTES? WHAT’S THE SPEED OF THE R-SACC-1200

This is a Semi-Auto Core Cutter Machine, so the speed depends on who is operating the core cutter. How quick is the operator? How many cardboards can he/she make in under a minute? Other than the operator, speed is also determined by the machine’s simplicity. The blade’s sharpness also affects the machine’s cutting speed.For the maximum efficiency and fast production, we recommend comparing different operators. Then task the fastest individual with the cardboard core cutting.

CATALOGUE R-SACC-1200
  • Catalogue : Semi-Auto Core Cutter Machine. Model : R-SACC-1200 3"
    Core Cutting Machine

    APPLICATIONS

    _
    SEMI-AUTO CORE CUTTER 6``
    • Semi-Auto Core Cutter 6" Videos.
    SEMI-AUTO CORE CUTTER 3`` & 6`` COMBO
    • R-SACC-1200 6" INCH MACHINES.
