TRIM WINDER MACHINES / EDGE TRIM SPOOLERS
MODEL : R-TW- 450 R1

ROLLEX TRIM WINDING MACHINE, Trim Disposal for Converters Has Always Posed a Challenge. While Nobody Wants Excess Trim Material, Certain Situations Make It Unavoidable. Hence, Addressing the Issue of Trim Disposal and Deriving Value from Trim Waste Becomes Crucial. Considerable Investments May Go Into Acquiring Slitting Equipment, Yet Operational Speed Can Be Hindered by Trim Waste Problems, Undercutting Anticipated Productivity. Therefore, Optimizing the Performance of Converting Machines Relies on Achieving Superior Profitability Through Quality. Our Trim Winder System Presents a Straightforward Solution Employing Cutting-Edge Winding Technology, Facilitating the Effective and Efficient Management of Trims, Thereby Elevating Profitability.

R-TW- 450 R1 Is the Most Technologically Advanced Trim Winder Machine for the Converting Industry. The Equipment Automatically Synchronizes to Any Slitter Machine and Pouching Machine at Any Speed Up to 300, 400, or 500 Meters / Minute.

Trim Winding System Is a Basic Piece of Equipment That Uses Cutting-Edge Winding Technology to Help You Handle Trims Properly and Efficiently for Increased Profitability.

This Is Our Trim Removal System. Will Process a Wide Range of Materials Based on the Needs of the Customer.

ROLLEX MACHINES Are Designed to Be Sturdy, Durable, and Dependable. Our Design Is Aimed at Enhancing Productivity and Operational Excellence.

GALLARY

_

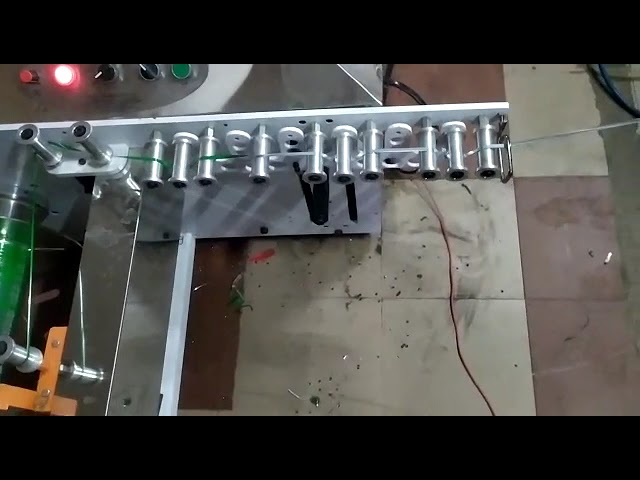

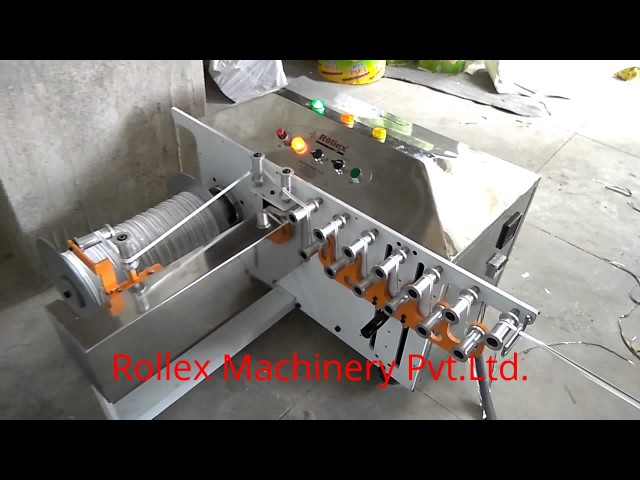

VIDEOS

_
TECHNICAL SPECIFICATION
  • Trim Width [Both Side] - 5 mm to 30 mm
  • Trim Size Thickness - 25 µm 100 µm [Micron]
  • Machine Running Speed -u p to 500 MPM
  • Reel Package Diameter - Ø 300 mm.
  • Reel Packaging Length - Ø 350 mm.
  • Power - 1 HP-440 V ± 5 % ,3 Phase,50Hz.
  • Machine Size (Inch) : [L X W X H] - 40" X 40" X 24" [INCH]
  • Packaging Size (Inch) : [L X W X H] - 46" X 46" X 29" [INCH]
  • Machine Weight (Approx) - 200 Kg [Net] - 250 Kg [Gross]
ADVANTAGES
  • FACILITATING MACHINE MOVEMENT AND STREAMLINING REEL CHANGE-OVER.
  • AUTO SYNCHRONIZED WITH 0 MPM TO 500 MPM.
  • LOW TRIM WASTE STORAGE AREA.
  • DOUBLE SIDE TRIM WINDING FROM LOW TO HIGH MICRON
  • EQUIPMENT THAT IS COMPLETELY AUTOMATIC.
  • WORK SPACE IS CLEAN AND ORGANIZED, WITH LOW BLOWER NOISE POLLUTION.
  • HIGH TRIM RE-SELL VALUE.
  • BEST IN CLASS WITH THE TRUST OF 1000+ CUSTOMERS WORLDWIDE
OPTIONAL EQUIPMENT
  • PP WOVEN SACK / FABRIC WINDER
  • HOT-STAMPING WASTE WINDER
  • CABLE WINDER
  • CLOTH WINDER
1
DSC01120-2048x1536
5
DSC01683

FEATURES OF THE MACHINE

_
SUBSTRATE / MATERIALS
  • BOPP, BOPA, BOPET, PET, LDPE – PLAIN, PRINTED, COATED OR METALIZED [25µm to 100 µm Micron]

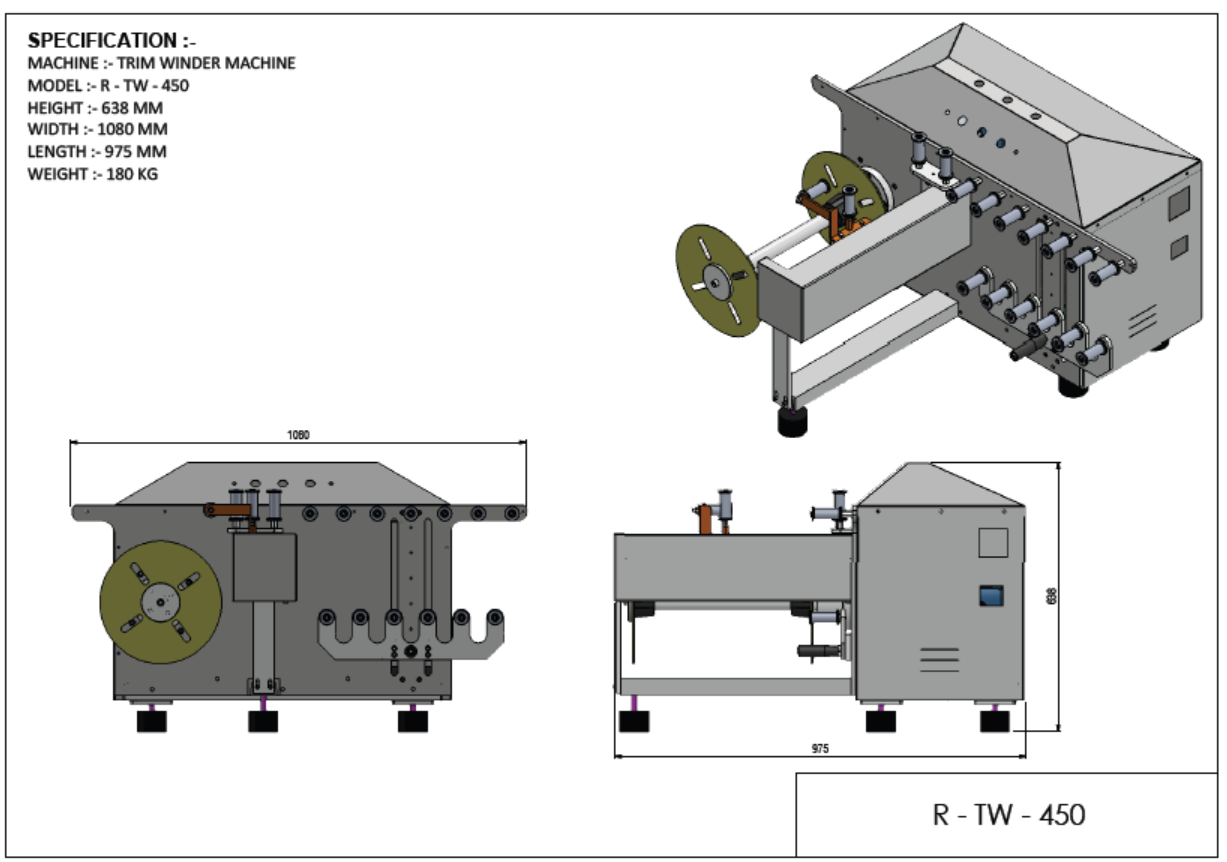

MACHINE DIMENSIONS
  • Machine Size (Inch) : [ L X W X H ] 40" X 40" X 24"
  • Machine Size (MM) : [ L X W X H ] 975 X 1080 X 638
PACKAING DIMENSIONS
  • Packaging Size [L X W X H] in INCH
  • 46" X 46" X 29"

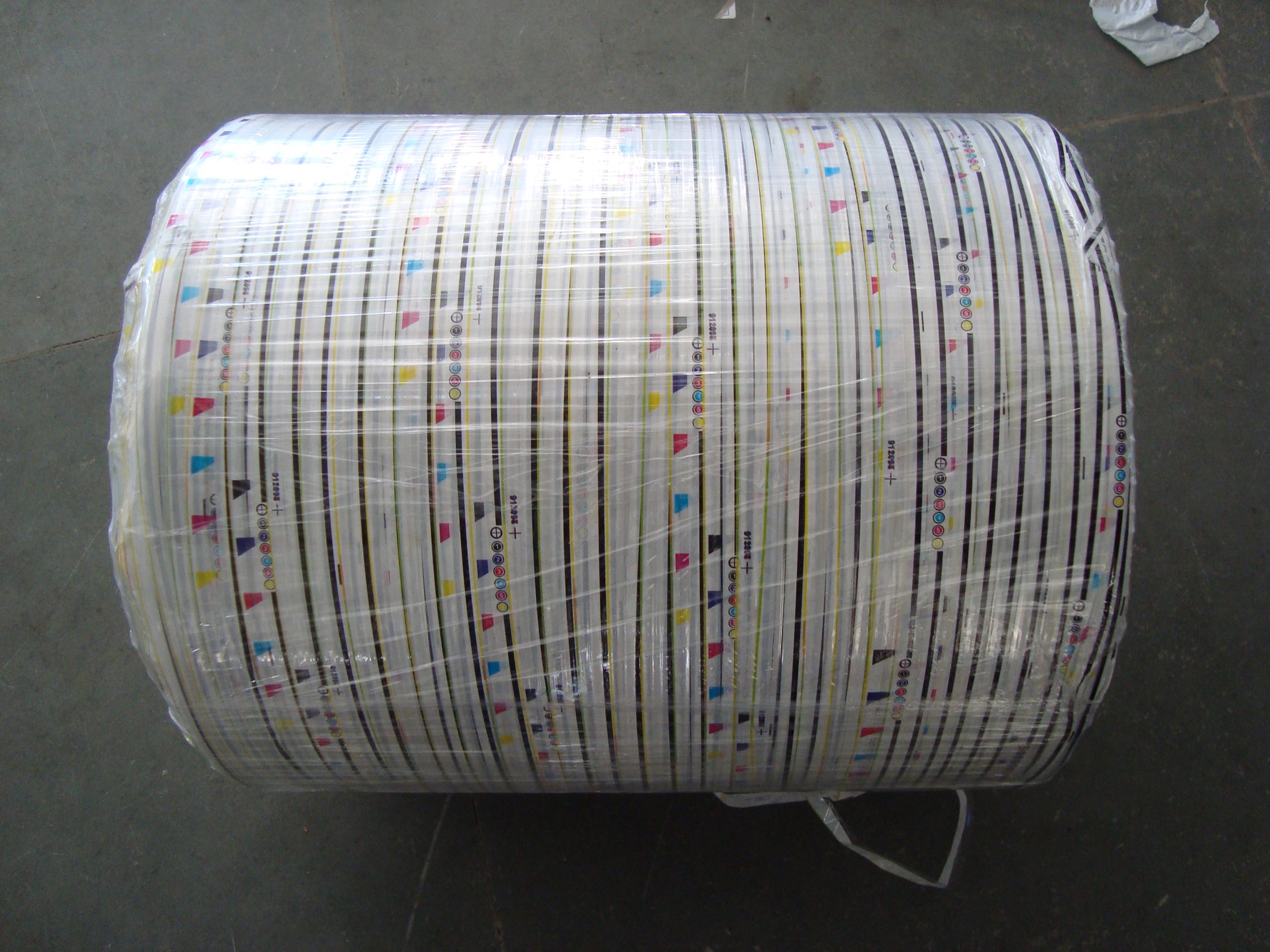

REEL PACKAGING SIZE
  • Trim Reel Width : 350 mm .
  • Trim Reel Diameter : 300 mm.
  • Trim Reel Weight : 20 to 25 Kg [Approximate]

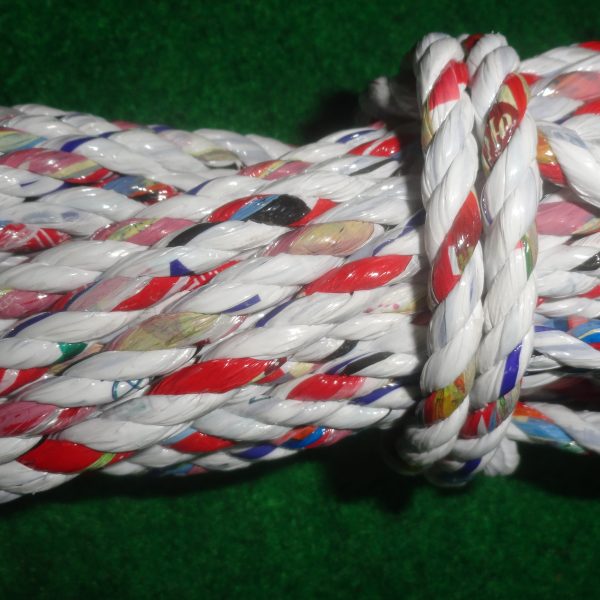

TRIM CONVERT TO ROPE PHOTOS
1
5
7
IMG_0504
CATALOGUE R-TW-450

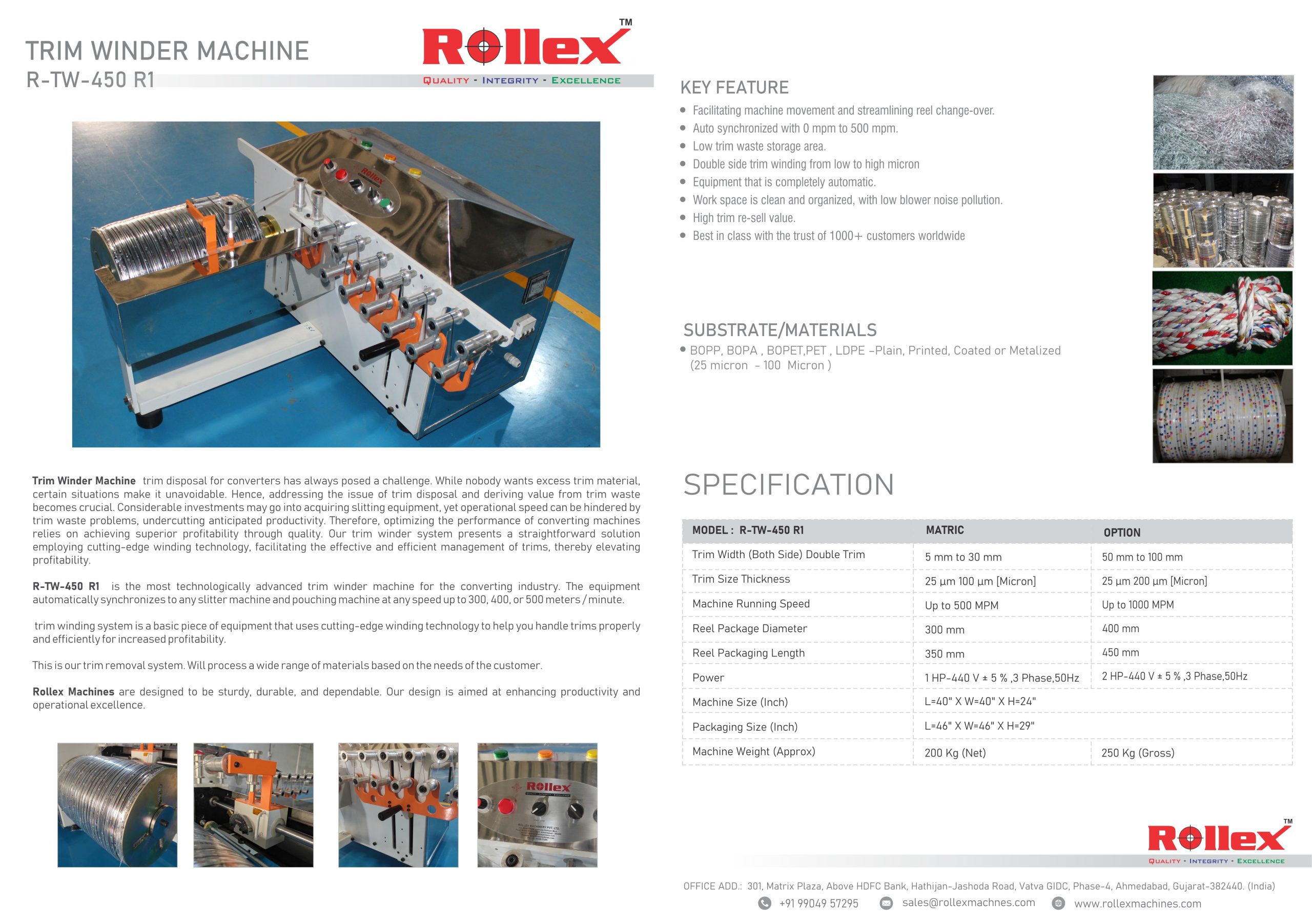

  • Catalogue : TRIM WINDER MACHINE MODEL: R-TW-450 R1

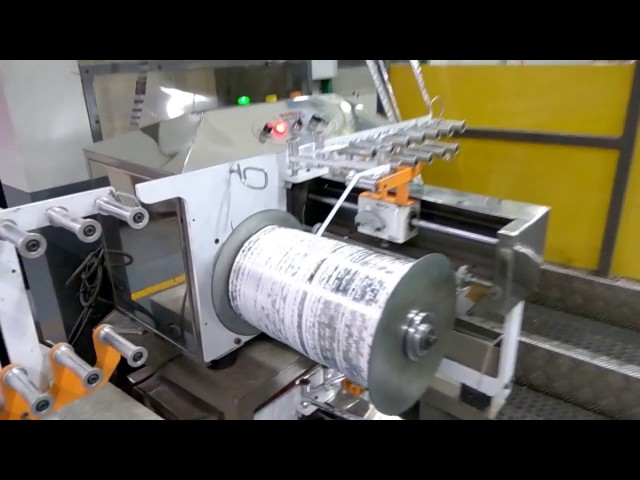

APPLICATIONS

_
EXTRUSION BLOW FILM
  • Attached with extrusion blown film.
EXTRUSION COATING & LAMINATION
  • R-TW-450 Attached to Extrusion Layer Coating.
WOVEN FABRIC EXTRUSION COATING & LAMINATION
  • Woven Fabric Extrusion Coating & Lamination.
  • Both Side trimming.
  • trim Width 25 to 30 mm.
HOT STAMP FOIL WINDING
  • Attached with Hot Stamp Foils Machines.
ATTACHED WITH METALIZED 500 MPM
  • Attached with MATALIZED FILM .
ATTACHEMENT WITH POUCH MACHINE
  • Attached with Pouch Machine .

INSTALLATION / SPARES PARTS

_
R-TW-450 MACHINE INSTALLATION VIDEOS
  • WE MAKES VERY SOON .
R-TW-450 SERVICES VIDEOS
  • DANCER SENSOR RE-PROGRAMMING.
  • DANCER BLOCK CHANGE
